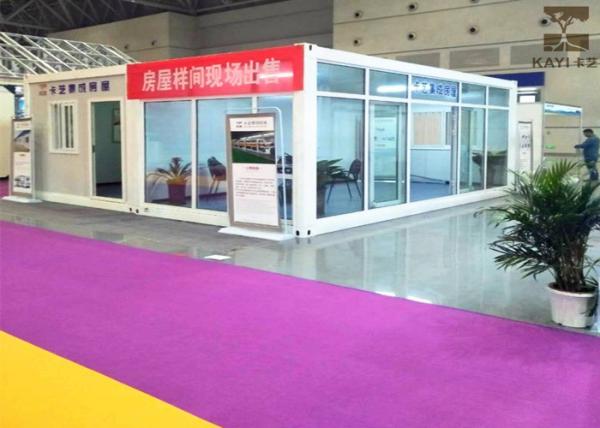

Prefabricated Container House for Temporary Reception Room and
Meeting Room
Product Introduction
The use of shipping containers as a building material has grown in
popularity over the past several years due to their inherent
strength, wide availability, and relatively low expense. Homes have
also been built with containers because they are seen as more
eco-friendly than traditional building materials such as brick and
cement.
Container House specification Options
1. Generally we make 20ft, 40ft sizes, combination is also
available. Size can be adjusted base on the standard.
2. Roof /Wall thickness: 50mm/75mm/100mm/150mm, according to
specific climate conditions
3. PVC vinyl, plywood, wooden floor, carpet, ceramic tiles flooring
system etc.
4. Sliding window with aluminum frame or PVC frame.
5. Sliding door, steel sandwich panel door, steel door, wooden
door.
6. Colorful painting, wall cladding for outer decoration
7 Electricity and water plumbing system can provided 8. Furniture
(bathroom unit, kitchen sink, bed, wardrobe, A/C, table and chairs
etc)
Product Parameter
| Specification | Size | Customized |
|
| Roof Type | Flat Roof with internal water draining design |
| Storey | ≦3 |
| Design Data (standard) | Design Serrvice Life | 25 Years |
| Floor Live Load | 2.0 KN/m2 |
| Roof Live Load | 0.5 KN/m2 |
| Weather Load | 0.6 KN/m2 |
| Seismic | 8 Degree |
| Structure | Corner Post | Galvanized Cold Roll Steel, Material:Q235B |
| Roof Main Beam | Galvanized Cold Roll Steel, Material:Q235B |
| Roof Sub-beam | Galvanized Cold Roll C Steel, Material:Q235B |
| Base Beam | Galvanized Cold Roll Steel, Material:Q235B |
| Base Sub-beam | Galvanized Cold Roll C Steel, Material:Q235B |
| Metal Surface Treatment | Using graphene powder electrostatic spray or paint spraying. |
| Roof | Roof Panel | SGLC color steel sheet, Color: White-gray |
| Insulation | Glass wool, with single side aluminum foil, Class A fire rating (
Non-combustible) |
| Top Ceiling | SGLC color steel sheet, Color: White-gray |
| Floor | Floor Surface | PVC Flooring. Color:Light Gray |
| Base | Cement Fiber Board, Density≧1.3g/cm2 |
| Insulation(Optional) | Glass wool, with single side aluminum foil, Class A fire rating (
Non-combustible) |
| Base External Plate | SGLC Sheet |
| ( Optional) |
| Wall | Interface | S type interface (cold biidge effect) |
| Color Steel Sheet | Aluminum zinc coated steel color embossed plate |
| Bulk Density | Glass wool(Density:64kg/m3)or Rock wool (Density:85kg/m3) |
| Door | Specification (mm) | W*H=850*2030 |
| Material | Steel Door |
| Window | Specification (mm) | W*H=1150*1100 |
| Frame Material | UPVC, 60 series |
| Glass | 5mm double glaze |
| Electrical | Voltage | 220v-250v |
| Electrical Wire | Electrical Wiring:6m2, AC and power socket wiring: 4m2, standard
socket wiring:2.5m2, Lighting Switch wiring:1.5m2 |
| Breaker | High breaking miniature circuit breaker |
| Loght Tube | Double tube Lamp, 36W, 2 Units |
| Water | Socket | 4 five holes socket 10A, 1 three holes AC socket 16A, GB |
| Inlet Pipe | PPR |
| Outlet Pipe | UPVC |
| Standardized construction, equipment and fittings accord with GB |
Product Features
1)Fast and Efficient
All products and components adopt factory prefabrication,
standardized production, convenient transporation and fast on -
site assembly.
(3 workers, 1 crane, 10-20 units assembled per day)
2) Flexible Assembly
Horizontal infinite connection, vertical free stack, vertical up to
3 layers, and can be set up stairs and pllatforms.
3) Environment Friendly
Modules are esaily removable at the end of the project making the
site in its initial conditions and appearance. To ensure the
concept of "zero waste" on site.
Product Application
Modules are esaily removable at the end of the project making the
site in its initial conditions and appearance. To ensure the
concept of "zero waste" on site.
Modular buildings are a greener, smarter, and faster way to build.
Since they are developed in a controlled factory environment, there
is less waste and more recycling. Modular structures offer
excellent flexibility because they can easily be disassembled,
relocated, or refurbished to meet new needs. Construction of
modular buildings is faster than traditional construction because
it is immune to weather delays. Moreover, site or foundation work
can be carried on simultaneously with modular construction, further
reducing time. The result is a building that meets building codes
with uncompromising standards of quality and safety.
