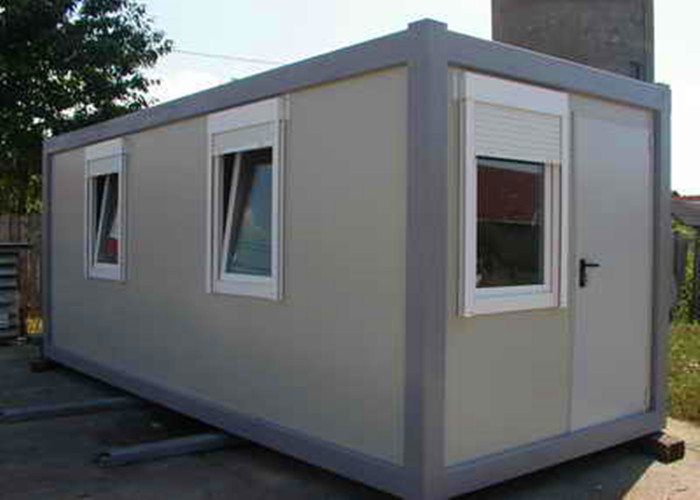

Insulation Flat Pack Container House with Shutter Window and
Drainage System
Product Introduction
house frame includes four columns, upper and lower beams, floor
beams, channel steel structure.
The container body is all-welded structure, with shock resistance,
anti-sag, anti-deformation, waterproof, fire prevention, wind
protection, anti-corrosion.
Seamless welding of walls and ceilings, sealing and waterproofing,
flooring laying with wooden floors, push-pull aluminum alloy glass
windows, stainless steel security nets, lighting, switches, air
conditioning sockets and other facilities in one step, on-site
lifting, ready-to-install .
Flexible combination-stand alone,or combined horizontally to create
big open space, or stacked vertically up to 3 storeys.
Full-range facilties -different types of roof,corridor,canopy and
staircase are availlable;
Plus specialized bathroom and kitchen containers to choose .
Advantages:
1. High Quality: Succeed Certificated by JIS , (another company is
Baosteel)
2. All Size Available: Regular or unusual
3. Cooperative Partners: All kinds of steel mails(state-owned,
medium, small size) with all level products
4. Mature Teamwork: Complete and orderly team structure, including
rich-experienced leader and energetic fresh blood
5. Export Ability: Having good exporting ability and relative
exporting qualifications
6. Reasonable Price: Able to give you best price
7. Multiple Payment Terms: T/T, T/T and L/C, T/T,etc
8. Delivery: Delivery on time
Type | External | Internal | Weight (kg) |
| Length | Width | Height (package) | Height (assembled) | Length | Width | Height |
| 20' | 6000 | 2450 | 500 | 2700 | 5800 | 2400 | 2500 | from 1800 |
Floor
| Steel frame | - made from cold rolled, welded steel profiles, 4 mm thick |
| - 4 corner casts, welded |
| - steel cross members, thickness=2mm |
| Insulation | - 100 mm thick Rock Wool |
| Subfloor | - 0.5mm thick, galvanized steel sheet |
| Floor | - 18mm plywood board |
- 1.8mm PVC floor - flammability class B1 - hardly combustible - smoke density class Q1 - low smoke emission - wear resistance factor: T level |
Roof
| Steel frame | - made from cold rolled, welded steel profiles, 3mm thick |
| - 4 corner casts, welded |
| - steel cross members, thickness=2mm |
| Roof cover | - 0.5mm thick, galvanized steel sheet - 360 degree seaming at joint of roof panels |
| Insulation | - 100 mm thick Rock Wool |
| Ceiling | - 10 mm chipboard (V 20), laminated on both sides, white - the chipboard complies with the emission value E1 |
| CEE connector | - sunken in frame on short end side |
