Safe and Comfortable Tourism Container House for Recreation &
Entertainment
Product Introduction
KAYI tourism container house has the characteristic of flexible
assembly. Horizontal infinite connection, vertical free stack,
vertical up to 3 layers, and can be set up stairs and platforms.
1. Easy and quick to construction, low-cost.
2. Stable steel structure, water-proof, fire-resistant and good for
moisture-proof. the steel structure can resist 9-10 grade hurricane
and 7-8 grade earthquake.
3. Convenient to move and disassemble; It can be moved flexibly and
lifted by forklift or crane.
4. Excellent performance, its service life can reach up to more
than 25 years.
5. flexibility and variability; for example: One container can put
on other one to form a 2 floor house.
Product Parameter
| Specification: Standard Container | Size | 20ft; 40ft |
|
|
| Roof Type | Flat Roof with internal water draining design |
| Storey | ≦3 |
| Design Data (standard) | Design Serrvice Life | 20 Years |
| Floor Live Load | 2.0 KN/m2 |
| Roof Live Load | 0.5 KN/m2 |
| Weather Load | 0.6 KN/m2 |
| Seismic | 8 Degree |
| Structure | Corner Post | Galvanized Cold Roll Steel, Material:Q235B |
| Roof Main Beam | Galvanized Cold Roll Steel, Material:Q235B |
| Roof Sub-beam | Galvanized Cold Roll C Steel, Material:Q235B |
| Base Beam | Galvanized Cold Roll Steel, Material:Q235B |
| Base Sub-beam | Galvanized Cold Roll C Steel, Material:Q235B |
| Metal Surface Treatment | Using graphene powder electrostatic spray or paint spraying. |
| Roof | Roof Panel | SGLC color steel sheet, Color: White-gray |
| Insulation | Glass wool, with single side aluminum foil, Class A fire rating (
Non-combustible) |
| Top Ceiling | SGLC color steel sheet, Color: White-gray |
| Floor | Floor Surface | PVC Flooring. Color:Light Gray |
| Base | Cement Fiber Board, Density≧1.3g/cm2 |
| Insulation(Optional) | Glass wool, with single side aluminum foil, Class A fire rating (
Non-combustible) |
| Base External Plate ( Optional) | SGLC Sheet |
| Wall | Interface | S type interface (cold biidge effect) |
| Color Steel Sheet | Aluminum zinc coated steel color embossed plate |
| Bulk Density | Glass wool(Density:64kg/m3)or Rock wool (Density:85kg/m3) |
| Door | Specification (mm) | W*H=850*2030 |
| Material | Steel Door |
| Window | Specification (mm) | W*H=1150*1100 |
| Frame Material | UPVC, 60 series |
| Glass | 5mm double glaze |
| Electrical | Voltage | 220v-250v |
| Electrical Wire | Electrical Wiring:6m2, AC and power socket wiring: 4m2, standard
socket wiring:2.5m2, Lighting Switch wiring:1.5m2 |
| Breaker | High breaking miniature circuit breaker |
| Loght Tube | Double tube Lamp, 36W, 2 Units |
| Water | Socket | 4 five holes socket 10A, 1 three holes AC socket 16A, GB |
| Inlet Pipe | PPR |
| Outlet Pipe | UPVC |
| Standardized construction, equipment and fittings accord with GB |
Product Features
1)Fast and Efficient
All products and components adopt factory prefabrication,
standardized production, convenient transporation and fast on -
site assembly.
(3 workers, 1 crane, 10-20 units assembled per day)
2) Environment Friendly
Modules are esaily removable at the end of the project making the
site in its initial conditions and appearance. To ensure the
concept of "zero waste" on site.
Our advantages:
1. Drainage roof design with the following Four layers: A: 0.5mm
color steel plate with 360° holding-on, B: 1mm B shape steel, C:
75mm glass wool(20kg/m3), D: 30mm PU sandwich panel
ceiling(40kg/m3)
2. Electric wiring well in the wall panel during, not on the wall
panel.
3. Production ability 100 sets per month, will meet your hurry need
of temporary house.
Product Application

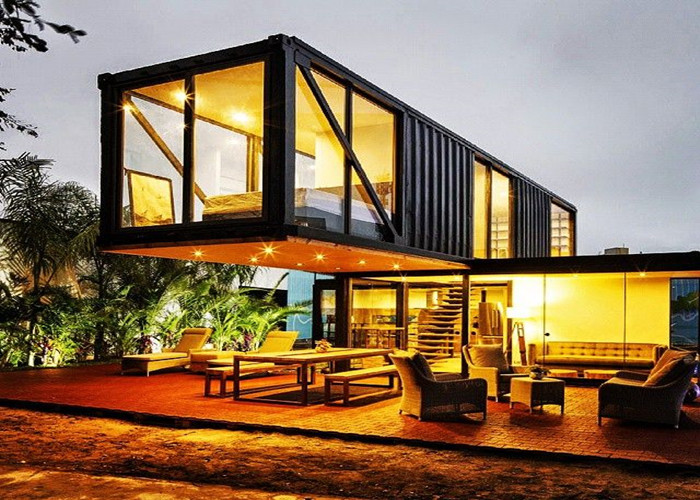

KAYI toursim container house has the characteristics of flexible
assembly, environment friendly, safe and comfort, now has benn
widely used to Villa, Hotel, Cottage, Vacation Home,Holiday House, Holiday Homes, etc.
