Special and Beautiful Wooden Wall Panel Modern Container House with
Single Office
Product Introduction
The use of shipping containers as a building material has grown in
popularity over the past several years due to their inherent
strength, wide availability, and relatively low expense. Homes have
also been built with containers because they are seen as more
eco-friendly than traditional building materials such as brick and
cement.
Container House specification Options
1. Generally we make 20ft, 40ft sizes, combination is also
available. Size can be adjusted base on the standard.
2. Roof /Wall thickness: 50mm/75mm/100mm/150mm, according to
specific climate conditions
3. PVC vinyl, plywood, wooden floor, carpet, ceramic tiles flooring
system etc.
4. Sliding window with aluminum frame or PVC frame.
5. Sliding door, steel sandwich panel door, steel door, wooden
door.
6. Colorful painting, wall cladding for outer decoration
7 Electricity and water plumbing system can provided 8. Furniture
(bathroom unit, kitchen sink, bed, wardrobe, A/C, table and chairs
etc)
Product Parameter
| Specification: Standard Container | Size | 20ft; 40ft |
|
|
| Roof Type | Flat Roof with internal water draining design |
| Storey | ≦3 |
| Design Data (standard) | Design Serrvice Life | 20 Years |
| Floor Live Load | 2.0 KN/m2 |
| Roof Live Load | 0.5 KN/m2 |
| Weather Load | 0.6 KN/m2 |
| Seismic | 8 Degree |
| Structure | Corner Post | Galvanized Cold Roll Steel, Material:Q235B |
| Roof Main Beam | Galvanized Cold Roll Steel, Material:Q235B |
| Roof Sub-beam | Galvanized Cold Roll C Steel, Material:Q235B |
| Base Beam | Galvanized Cold Roll Steel, Material:Q235B |
| Base Sub-beam | Galvanized Cold Roll C Steel, Material:Q235B |
| Metal Surface Treatment | Using graphene powder electrostatic spray or paint spraying. |
| Roof | Roof Panel | SGLC color steel sheet, Color: White-gray |
| Insulation | Glass wool, with single side aluminum foil, Class A fire rating (
Non-combustible) |
| Top Ceiling | SGLC color steel sheet, Color: White-gray |
| Floor | Floor Surface | PVC Flooring. Color:Light Gray |
| Base | Cement Fiber Board, Density≧1.3g/cm2 |
| Insulation(Optional) | Glass wool, with single side aluminum foil, Class A fire rating (
Non-combustible) |
| Base External Plate ( Optional) | SGLC Sheet |
| Wall | Interface | S type interface (cold biidge effect) |
| Color Steel Sheet | Aluminum zinc coated steel color embossed plate |
| Bulk Density | Glass wool(Density:64kg/m3)or Rock wool (Density:85kg/m3) |
| Door | Specification (mm) | W*H=850*2030 |
| Material | Steel Door |
| Window | Specification (mm) | W*H=1150*1100 |
| Frame Material | UPVC, 60 series |
| Glass | 5mm double glaze |
| Electrical | Voltage | 220v-250v |
| Electrical Wire | Electrical Wiring:6m2, AC and power socket wiring: 4m2, standard
socket wiring:2.5m2, Lighting Switch wiring:1.5m2 |
| Breaker | High breaking miniature circuit breaker |
| Loght Tube | Double tube Lamp, 36W, 2 Units |
| Water | Socket | 4 five holes socket 10A, 1 three holes AC socket 16A, GB |
| Inlet Pipe | PPR |
| Outlet Pipe | UPVC |
| Standardized construction, equipment and fittings accord with GB |
Product Features
1) Fast and Efficient
All products and components adopt factory prefabrication,
standardized production, convenient transporation and fast on -
site assembly.
(3 workers, 1 crane, 10-20 units assembled per day)
2) Environment Friendly
Modules are esaily removable at the end of the project making the
site in its initial conditions and appearance. To ensure the
concept of "zero waste" on site.
Advantages:
1. High Quality: Succeed Certificated by JIS , (another company is
Baosteel)
2. All Size Available: Regular or unusual
3. Cooperative Partners: All kinds of steel mails(state-owned,
medium, small size) with all level products
4. Mature Teamwork: Complete and orderly team structure, including
rich-experienced leader and energetic fresh blood
5. Export Ability: Having good exporting ability and relative
exporting qualifications
6. Reasonable Price: Able to give you best price
7. Multiple Payment Terms: T/T, T/T and L/C, T/T,etc
8. Delivery: Delivery on time
Product Application
KAYI toursim container house has the characteristics of flexible
assembly, environment friendly, safe and comfort, now has benn
widely used to Villa, Hotel, Cottage, Vacation Home,Holiday House, Holiday Homes, etc.

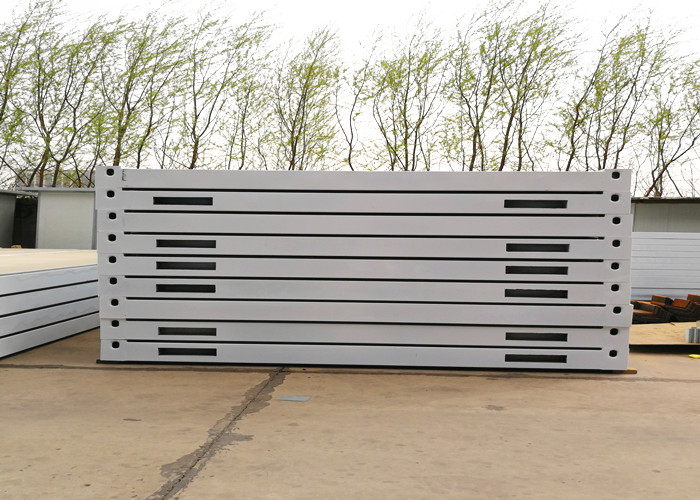

Container houses are transported in flat packed type by shipping
container, installed in several hours. Then you can own a fully
functional office. Container houses is durable, tough and movable.
