Temporary Prefabricted Construction Container House with Exterbal
Stairs
Product Introduction
KAYI specialize in prefab/prefabricated houses and mobile container
houses with good quality and competitive price. Having been in this
line for 2 years, more than 50 R&D staff and more than 400
workers support us to get the big market share and we will continue
to endeavor to supply more creative housing solutions.prefabricated container house has the characteristics of flexible
assembly, environment friendly, safe and comfort, now has benn
widely used to Large - scale Events, Construction Site, Guard House, Workshop,
Plant, Temporary Office, etc.

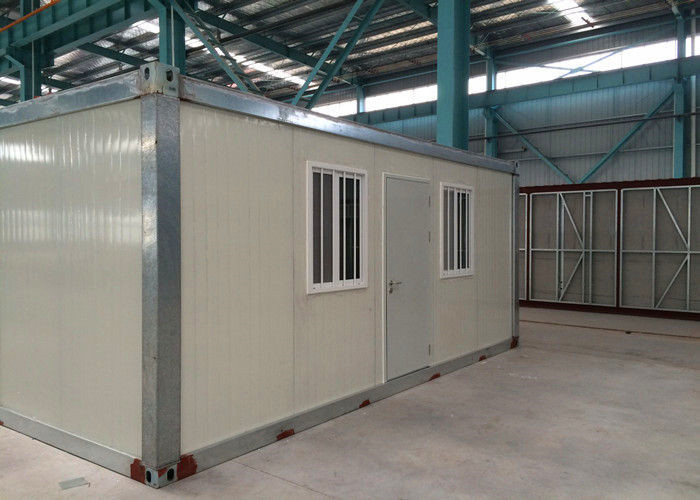

5800mm*2250mm*2500mm is one of the standard sizes of KAYI Prefab Construction Housing, easy to transport and assemble highly, which is your best choice.
Product Parameter
| Specification | Size | Customized |
|
| Roof Type | Flat Roof with internal water draining design |
| Storey | ≦3 |
| Design Data (standard) | Design Serrvice Life | 25 Years |
| Floor Live Load | 2.0 KN/m2 |
| Roof Live Load | 0.5 KN/m2 |
| Weather Load | 0.6 KN/m2 |
| Seismic | 8 Degree |
| Structure | Corner Post | Galvanized Cold Roll Steel, Material:Q235B |
| Roof Main Beam | Galvanized Cold Roll Steel, Material:Q235B |
| Roof Sub-beam | Galvanized Cold Roll C Steel, Material:Q235B |
| Base Beam | Galvanized Cold Roll Steel, Material:Q235B |
| Base Sub-beam | Galvanized Cold Roll C Steel, Material:Q235B |
| Metal Surface Treatment | Using graphene powder electrostatic spray or paint spraying. |
| Roof | Roof Panel | SGLC color steel sheet, Color: White-gray |
| Insulation | Glass wool, with single side aluminum foil, Class A fire rating (
Non-combustible) |
| Top Ceiling | SGLC color steel sheet, Color: White-gray |
| Floor | Floor Surface | PVC Flooring. Color:Light Gray |
| Base | Cement Fiber Board, Density≧1.3g/cm2 |
| Insulation(Optional) | Glass wool, with single side aluminum foil, Class A fire rating (
Non-combustible) |
| Base External Plate | SGLC Sheet |
| ( Optional) |
| Wall | Interface | S type interface (cold biidge effect) |
| Color Steel Sheet | Aluminum zinc coated steel color embossed plate |
| Bulk Density | Glass wool(Density:64kg/m3)or Rock wool (Density:85kg/m3) |
| Door | Specification (mm) | W*H=850*2030 |
| Material | Steel Door |
| Window | Specification (mm) | W*H=1150*1100 |
| Frame Material | UPVC, 60 series |
| Glass | 5mm double glaze |
| Electrical | Voltage | 220v-250v |
| Electrical Wire | Electrical Wiring:6m2, AC and power socket wiring: 4m2, standard
socket wiring:2.5m2, Lighting Switch wiring:1.5m2 |
| Breaker | High breaking miniature circuit breaker |
| Loght Tube | Double tube Lamp, 36W, 2 Units |
| Water | Socket | 4 five holes socket 10A, 1 three holes AC socket 16A, GB |
| Inlet Pipe | PPR |
| Outlet Pipe | UPVC |
| Standardized construction, equipment and fittings accord with GB |
Product Features
The use of shipping containers as a building material has grown in
popularity over the past several years due to their inherent
strength, wide availability, and relatively low expense. Homes have
also been built with containers because they are seen as more
eco-friendly than traditional building materials such as brick and
cement.
Container House specification Options
1. Generally we make 20ft, 40ft sizes, combination is also
available. Size can be adjusted base on the standard.
2. Roof /Wall thickness: 50mm/75mm/100mm/150mm, according to
specific climate conditions
3. PVC vinyl, plywood, wooden floor, carpet, ceramic tiles flooring
system etc.
4. Sliding window with aluminum frame or PVC frame.
5. Sliding door, steel sandwich panel door, steel door, wooden
door.
6. Colorful painting, wall cladding for outer decoration
7 Electricity and water plumbing system can provided 8. Furniture
(bathroom unit, kitchen sink, bed, wardrobe, A/C, table and chairs
etc)
